Eliminate Rough Edges, Ensure Perfect Fit: Mastering Surface Integrity
Reliance on manual, inconsistent cleaning methods frequently results in dimensional variability, aesthetic defects, and assembly line rejections. Professional fettling in casting overcomes these finishing bottlenecks by deploying automated grinding cells and hydraulic trimming presses to remove excess material with sub-millimeter accuracy. This operational refinement ensures uniform surface quality, eliminating dangerous sharp edges while preparing components for seamless coating or machining. Partner with Marcus Hi-Tech to standardize your finishing protocols and achieve “assembly-ready” status directly from the foundry.
How to Configure Your Fettling & Finishing Project
Follow this systematic workflow to transition your raw castings into clean, spec-compliant parts. We progress from defect mapping to automated finishing execution, certifying that your components meet the strict cosmetic and dimensional standards of modern manufacturing.
Supplies Needed:
- Cosmetic Acceptance Standards (Visual Limits)
- Raw Casting Samples
- Fixture Design/CAD Data
Step 1: Submit Samples for Defect Mapping
Send us your “as-cast” samples and technical drawings via our secure portal. Clearly define the parting lines, gate locations, and allowable flash limits. Our finishing engineers analyze the geometry to determine the most efficient material removal method—whether robotic abrasion, thermal deburring, or hydraulic trimming.
Step 2: Select Abrasives and Tooling
Consult with our process specialists to finalize the grinding media and fixture designs that suit your alloy’s hardness. During this phase, you will also specify surface roughness (Ra) requirements and any pre-treatment needs, such as shot blasting or vibratory finishing, to ensure a uniform texture.
Step 3: Process Trial and Fixture Validation
Once the method is locked, we fabricate custom holding fixtures and program the robotic paths or trim dies. A “pilot lot” is processed to validate cycle times and finish consistency. These samples undergo visual and tactile inspection to confirm they match your “Golden Sample” benchmarks before full-scale operation.
Step 4: Approve for Volume Processing
Review the trial report and physical finish quality. Upon your authorization, Marcus Hi-Tech activates the mass finishing line. We integrate automated optical inspection (AOI) and gauge checks throughout the shift to maintain strict adherence to cosmetic standards across every batch.
Product

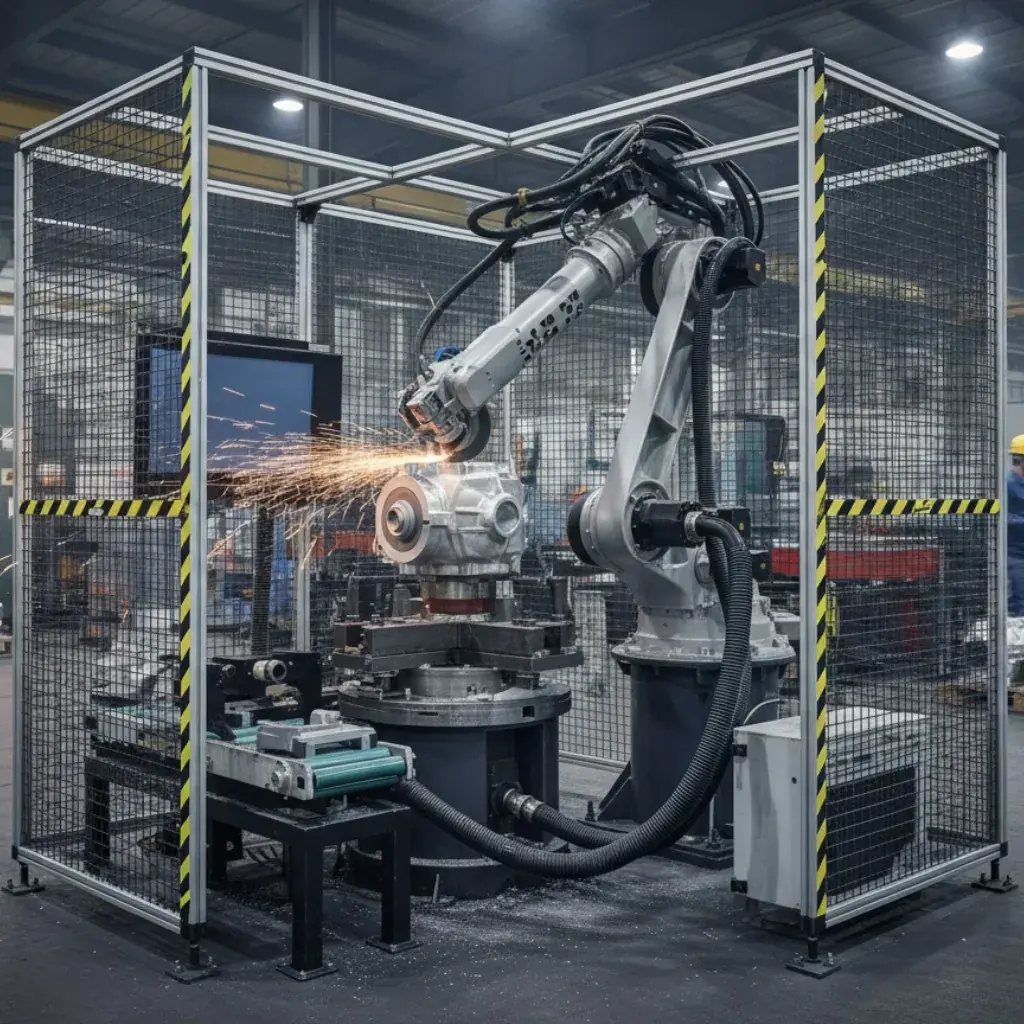

1. Robotic Grinding CellModel ID: MHT-FET-ROB-X7
Description: Fully automated 6-axis robotic fettling cell designed for heavy automotive castings like engine blocks and cylinder heads. Delivers consistent grinding pressure to remove heavy gates and risers without gouging the parent material.
Technical Specifications:
- Payload: Up to 150 kg
- Spindle Speed: Variable (up to 24,000 RPM)
- Accuracy: ± 0.1 mm material removal
- Throughput: High Volume (Continuous Cycle)
- Availability: Custom Integration

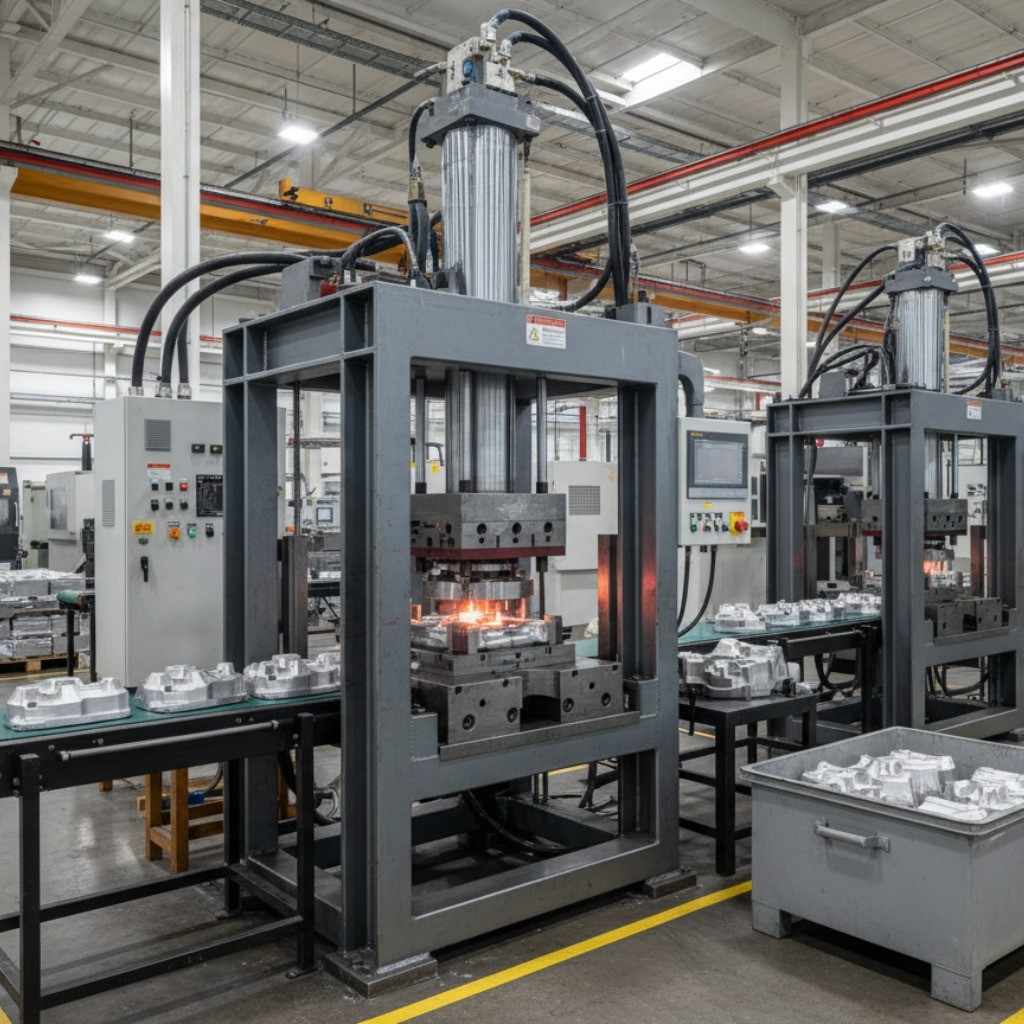

2. Hydraulic Trim Press ServiceModel ID: MHT-TRM-HYD-50
Description:Â High-speed hydraulic trimming solution for removing flash from die-cast components in a single stroke. Ideal for thin-walled aluminium and zinc parts where manual deburring risks bending or distortion.
Technical Specifications:
- Tonnage: 20 to 100 Tons
- Cycle Time:< 10 Seconds
- Die Type: Precision Shear Tooling
- Safety: Light Curtain Protection
- Availability: Contract Service (MOQ: 2,000 Units)
3. Thermal Energy Deburring (TEM)Model ID: MHT-TEM-EXP-03
Description: Advanced batch processing method utilizing a controlled thermal reaction to vaporize internal burrs and hidden flash. Perfect for complex hydraulic manifolds and valve bodies where mechanical tools cannot reach internal intersecting holes.
Technical Specifications:
- Chamber Size: Ø250mm x 300mm
- Gas Mixture: Methane/Oxygen
- Cycle Time:< 2 Minutes per batch
- Finish: Burrs Vaporized / Oxide Layer
- Availability: Batch Processing Service

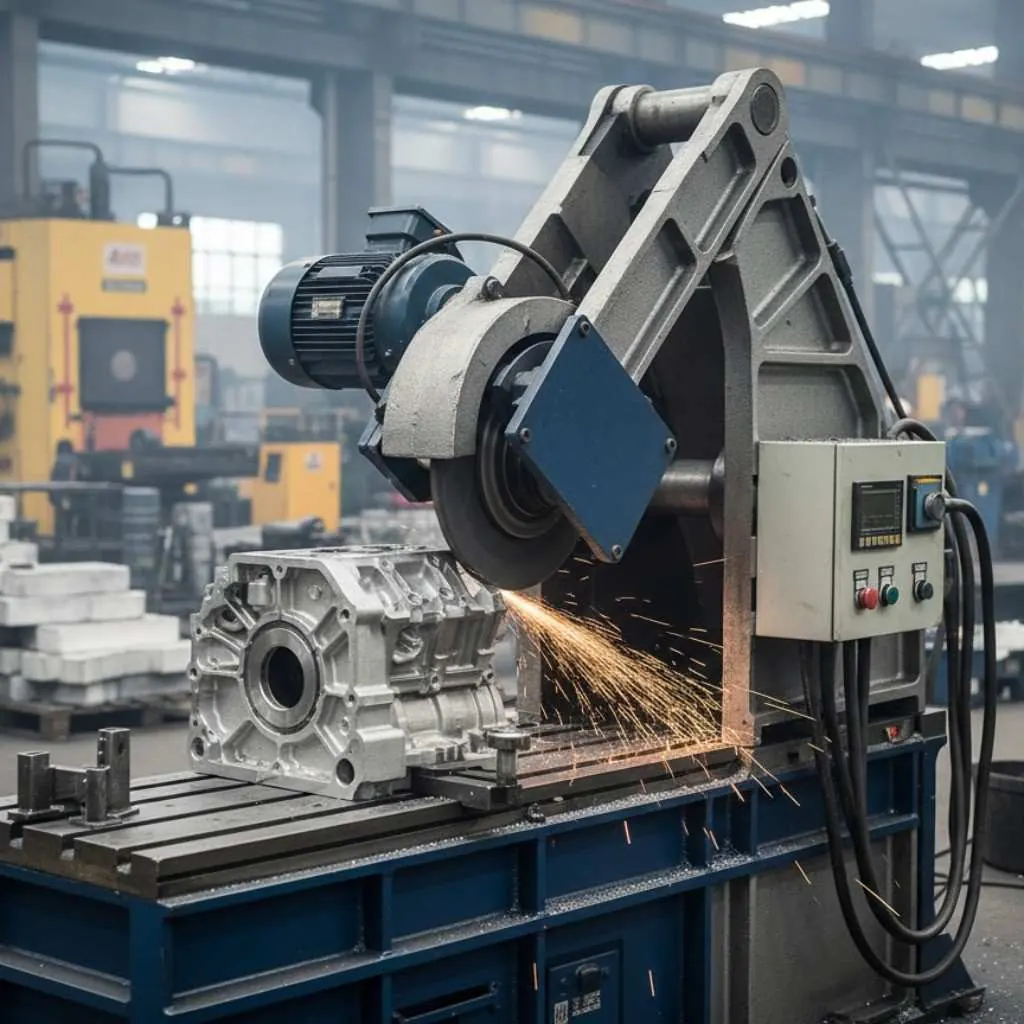

4. Heavy-Duty Swing Frame GrindingModel ID: MHT-GRN-SWG-900
Description: Robust manual finishing station for large, heavy castings such as pump casings and railway bolsters. Operators use counterbalanced swing frame grinders to rapidly remove large risers and pads from steel and iron castings.
Technical Specifications:
- Wheel Diameter: 400mm - 600mm
- Material Suitability: Cast Iron, Ductile Iron, Steel
- Dust Control: Integrated Extraction Hood
- Application: Rough Snagging
- Availability: Job Work Basis

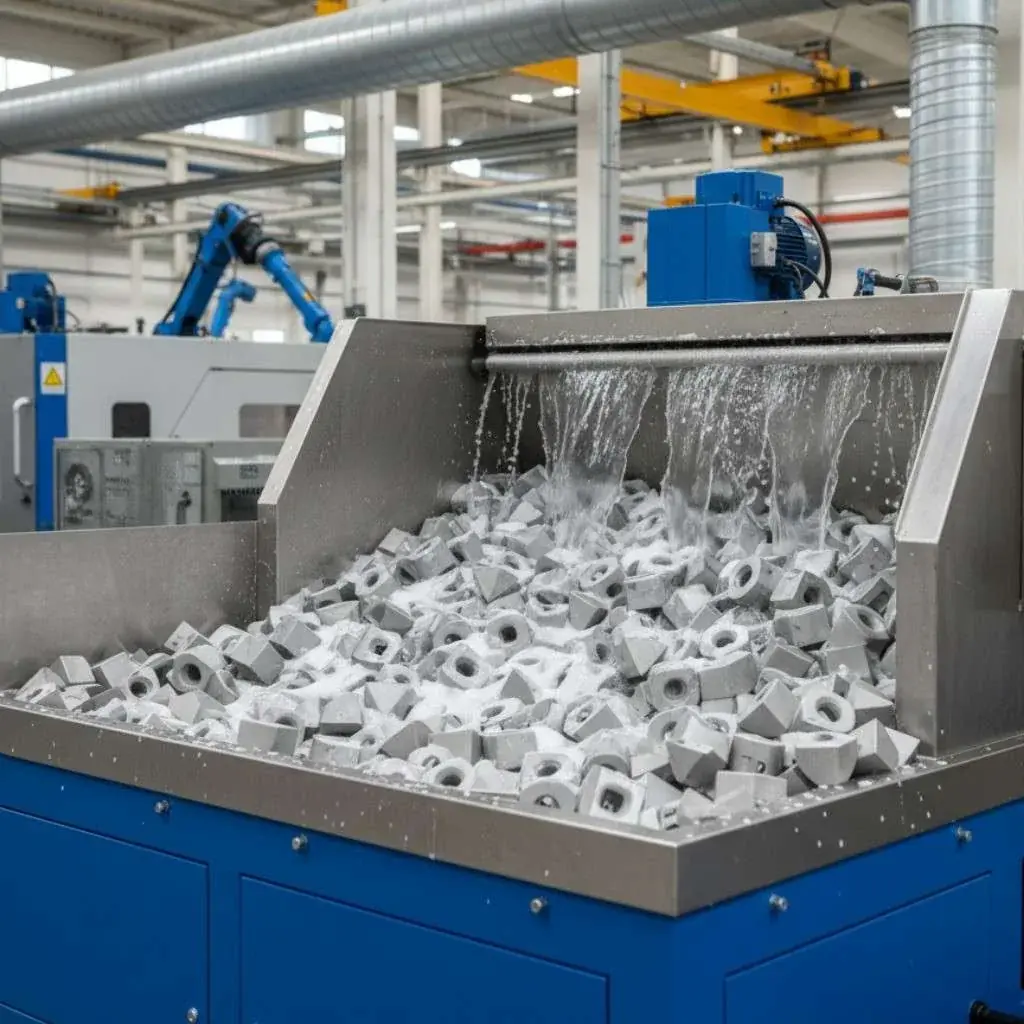

5. Vibratory Finishing & PolishingModel ID: MHT-VIB-POL-200
Description: Mass finishing system using ceramic or plastic media to smooth sharp edges and improve surface brightness. Essential for small brackets and housings requiring a tactile-friendly, aesthetic finish prior to plating or painting.
Technical Specifications:
- Capacity: 200 Liters - 1000 Liters
- Media Types: Ceramic, Plastic, Porcelain
- Compound: Rust Inhibitor / Brightener
- Noise: Acoustic Cover Enclosed
- Availability: Daily Batch Cycles
