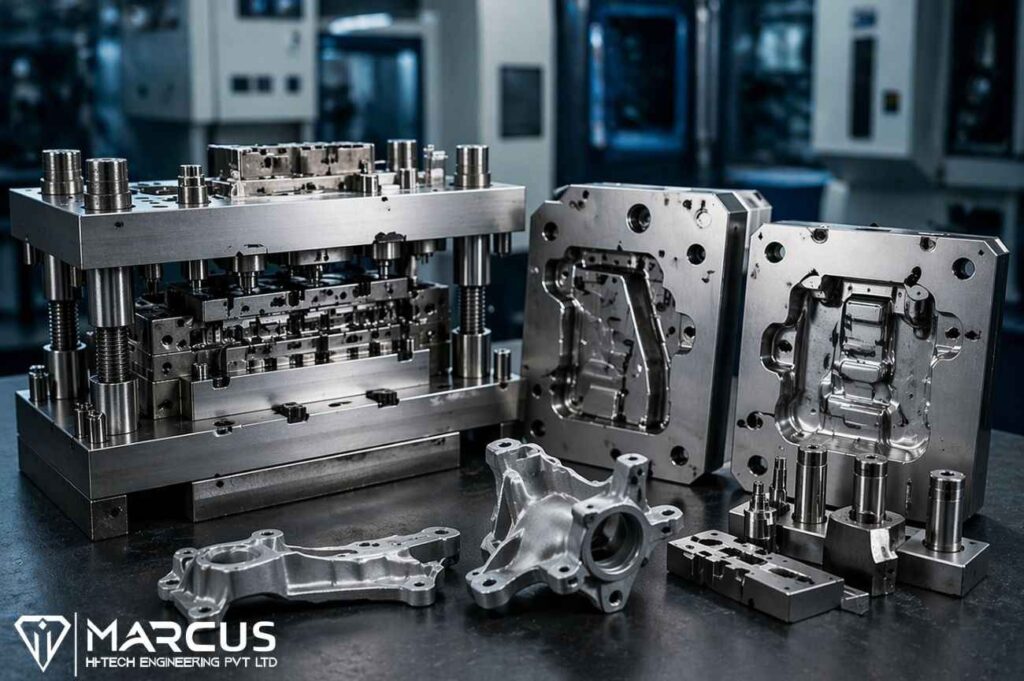

Custom Metal Stamping Dies & Tooling

Bespoke Tooling Engineering by Marcus Manufacturing

At Marcus Manufacturing, we specialize in the architecture and fabrication of custom metal stamping dies that serve as the foundational blueprint for high-fidelity component production. We bridge the gap between complex industrial design and repeatable mass production, ensuring that every stroke of the press delivers absolute dimensional integrity.

Advanced Die Configurations

Our toolroom is equipped to engineer a diverse array of die geometries and functional sequences, tailored to your production volume:

Progressive Matrix Dies: Engineered for multi-stage efficiency, these dies execute a sequence of piercings, bends, and forms within a single toolset, optimizing throughput for high-velocity manufacturing.
High-Precision Multi-Out Tooling: We design and build duplicate or triplicate die cavities within a single tool to exponentially increase production capacity without increasing press time.
Transfer & Compound Tooling: Specialized for intricate parts requiring deep-drawn features or heavy-gauge forming that demand specific handling between stations.
Single-Stage Blanking Tools: Robust, cost-effective solutions for high-accuracy geometric cutting and simple part fabrication.

The Marcus Advantage: Engineering Precision

We don’t just build dies; we optimize the entire metal-forming lifecycle through advanced material science and technical mastery.

1. Subtractive Precision with CNC & Wire EDM

Utilizing state-of-the-art Wire Electrical Discharge Machining (EDM) and multi-axis CNC milling, we achieve ultra-tight tolerances. This level of accuracy is essential for complex geometries where a fraction of a millimeter determines the fit and function of the final assembly.

2. Material-Optimized Tooling

Our engineers select tool steels and coatings based on your specific feedstock to ensure maximum tool life and minimal material displacement. We specialize in dies for:

High-Strength Aluminum Alloys
Corrosion-Resistant Stainless Steel
Copper & Bronze Conductivity Components
Heavy-Gauge Carbon Steel

3. Integrated CAD/CAM Simulations

Every custom tool is validated through advanced simulation software. By predicting how metal will react under pressure before the first cut is made in our shop, we significantly reduce prototyping cycles and eliminate potential production bottlenecks.

Operational Excellence & Longevity

In-House Tool Maintenance: We offer comprehensive sharpening and revision services to preserve the “as-new” performance of your dies over millions of cycles.
Waste Mitigation: Our die designs are engineered to maximize coil utilization, significantly reducing scrap rates and lowering your overall cost-per-part.
ISO-Standard Consistency: Every die undergoes a rigorous quality control audit before integration into the production line.
