Hot Chamber Die Casting

Premier hot chamber die casting services for high-precision zinc and magnesium components. We offer ultra-fast cycle times, thin-wall precision, and multi-slide tooling.

Eliminate Assembly Bottlenecks, Accelerate Throughput: The Speed of Integration

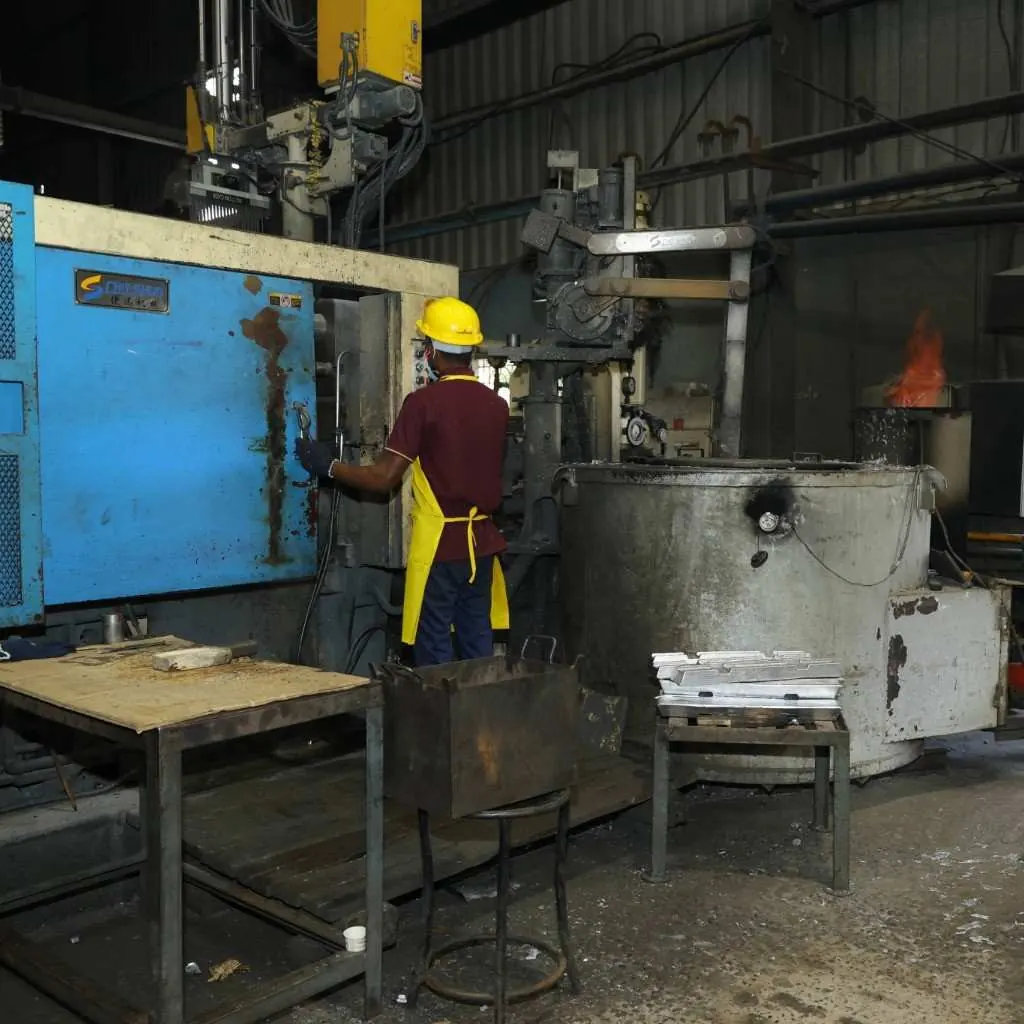

Reliance on cold chamber processes or multi-part assembly for small, intricate components often creates unnecessary cycle delays and dimensional variation. Hot chamber die casting resolves these efficiency gaps by immersing the injection mechanism directly into the molten metal reservoir. This “gooseneck” integration eliminates metal transfer time, allowing for rapid-fire injection cycles and superior fluidity. This process excellence guarantees flash-free precision for complex, miniature geometries, significantly reducing piece-price while maximizing output speed. Partner with Marcus Hi-Tech to drive high-velocity precision into your component strategy.

How to Initiate Your Hot Chamber Casting Project

Follow this accelerated workflow to turn your intricate designs into mass-produced, high-fidelity components. We move from micro-precision design to high-speed molding, ensuring your parts meet the tight tolerances required by electronics and automotive lock systems.

Supplies Needed:

• 3D CAD Data (STEP/IGES)
• Alloy Specification (Zamak/AZ91)
• Surface Plating Requirements

Step 1: Submit Micro-Precision Designs

Upload your intricate component models via our secure engineering hub. Our tooling experts review the geometry for “net-shape” feasibility, analyzing wall thicknesses (down to 0.5mm) and identifying opportunities for multi-slide tooling to eliminate secondary machining operations.

Step 2: Alloy and Finish Configuration

Consult with our material scientists to select the ideal low-melting-point alloy (e.g., Zamak 3, Zamak 5, or Magnesium AZ91D). At this stage, you will also define critical surface treatments—such as copper-nickel-chrome plating or e-coating—to ensure corrosion resistance and aesthetic appeal.

Step 3: Tooling and First off Tool (FOT)

Once the engineering is approved, we fabricate the high-speed steel mold. Because hot chamber machines exert less thermal shock on the die, we can focus on precision detailing. We run an initial “FOT” pilot to verify dimensional accuracy and surface finish quality against your specifications.

Step 4: Authorize for High-Speed Production

Evaluate the FOT report and physical samples. Upon your approval, Marcus Hi-Tech triggers the high-volume run. We utilize automated de-gating and in-line sensing to monitor nozzle temperature and injection pressure, ensuring uniform part weight across millions of rapid cycles.

Product

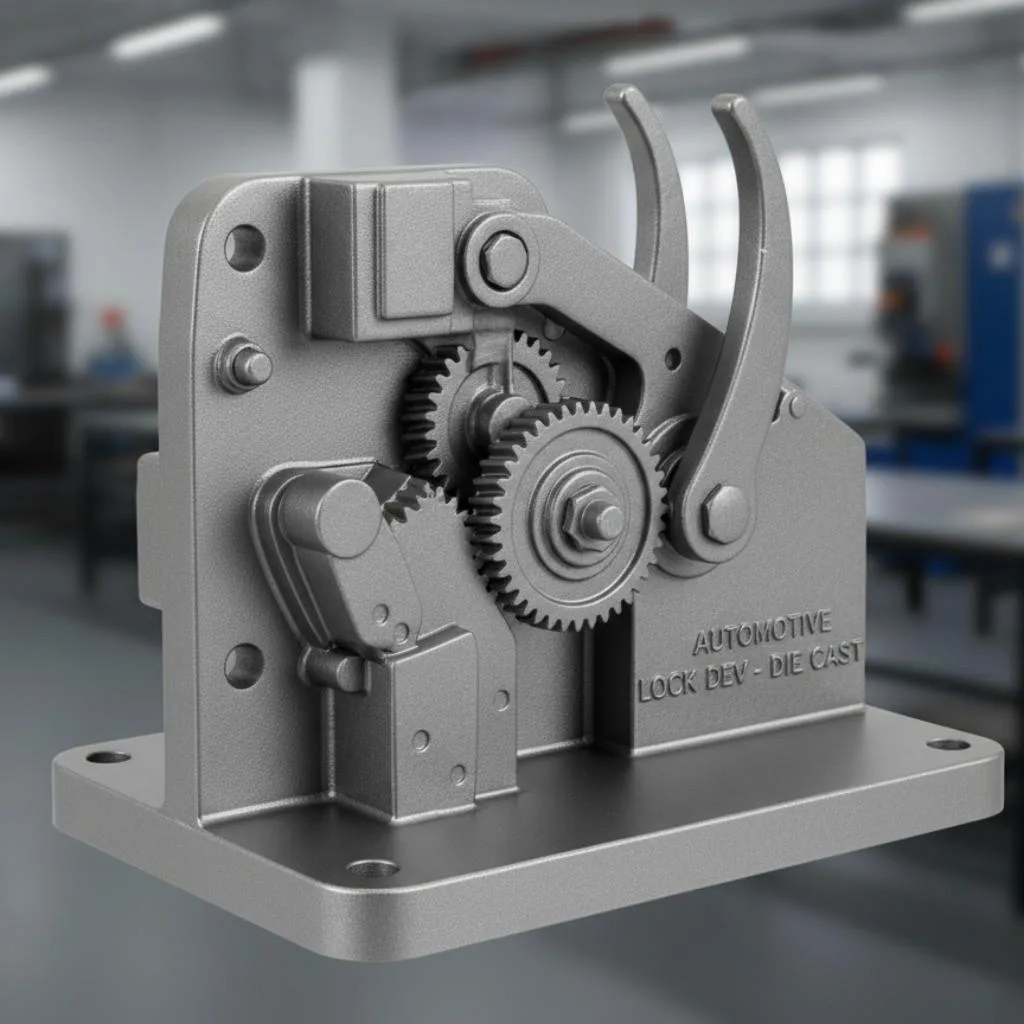

1. Automotive Door Lock MechanismModel ID: MHT-AUTO-LCK-Z5

Description: Intricate, safety-critical lock barrel housing produced via hot chamber zinc casting. Features complex internal threads and cam profiles cast directly without machining. High dimensional stability ensures smooth key operation.

Technical Specifications:

• Material: Zamak 5 (Zinc Alloy)
• Cycle Time:< 8 Seconds
• Tolerance: ± 0.02mm
• Finish: Zinc Plated (Yellow Passivation)
• Availability: High Volume Production

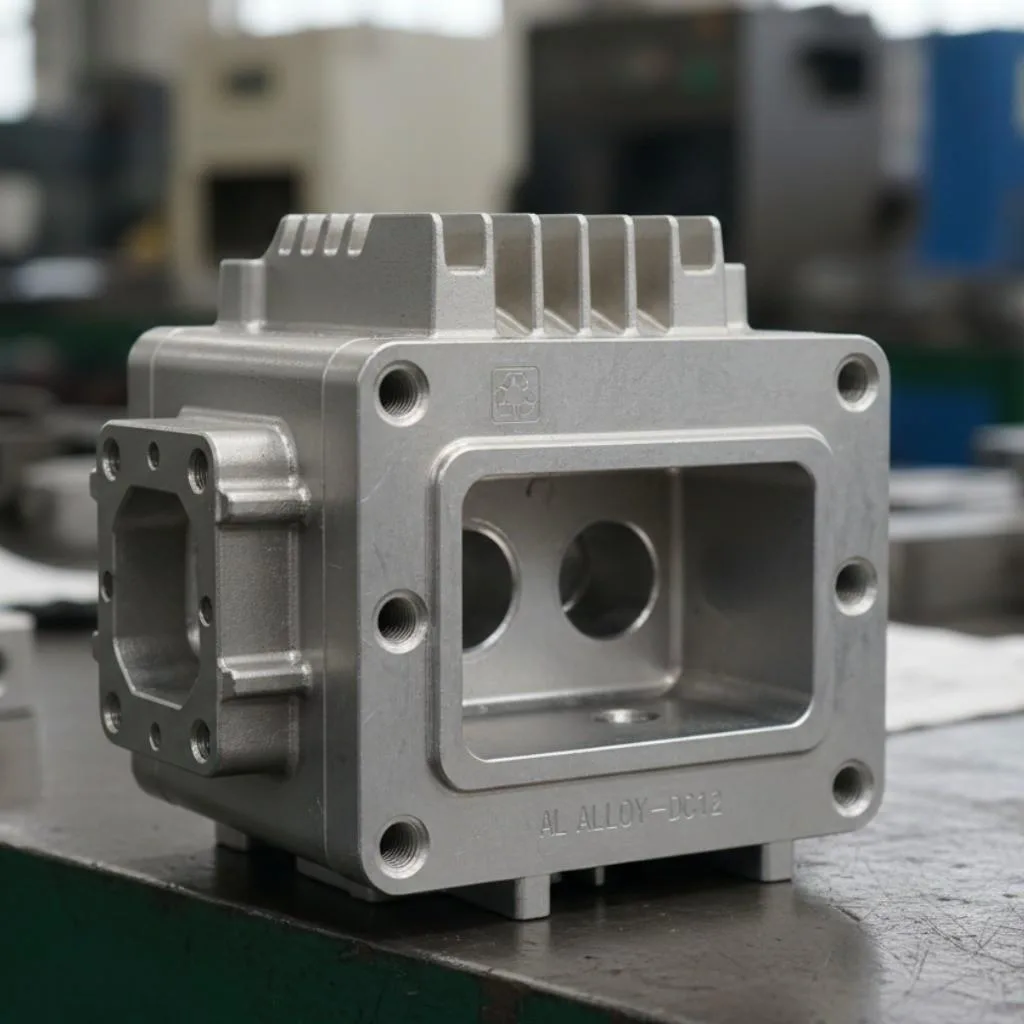

2. Electronic Connector Housing (EMI Shield)Model ID: MHT-ELC-CON-SH

Description: Precision-molded enclosure for high-speed data connectors. The zinc alloy provides natural EMI/RFI shielding, protecting sensitive signals. Thin-wall capabilities allow for compact, high-density designs.

Technical Specifications:

• Wall Thickness: 0.6mm
• Shielding: Natural EMI Attenuation
• Plating: Nickel / Tin
• Geometry: Multi-Slide Core Pulls
• Availability: Mass Production (MOQ: 10,000)

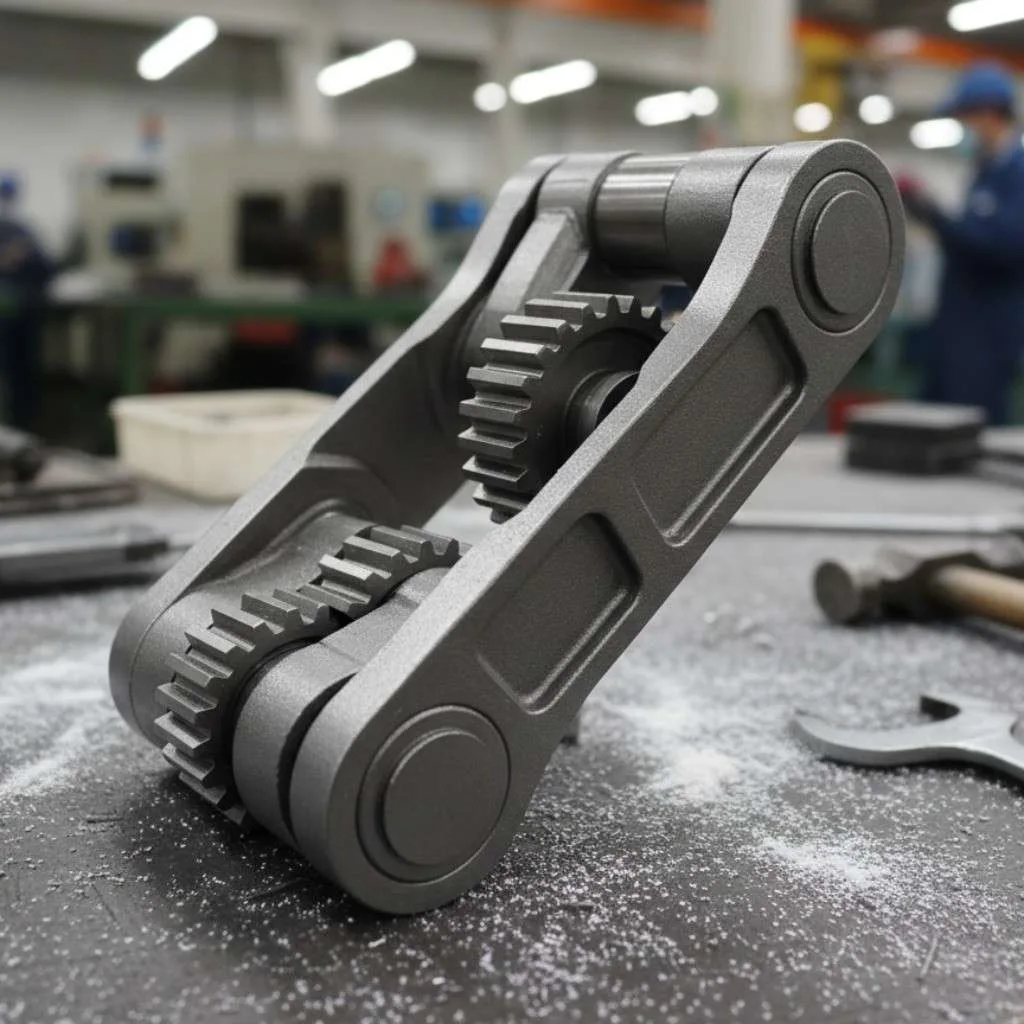

3. Magnesium Laptop HingeModel ID: MHT-IT-HNG-MG

Description: Ultra-lightweight yet rigid hinge bracket for laptops and tablets. Hot chamber magnesium casting offers the strength-to-weight ratio needed for portable electronics while maintaining thin, sleek profiles.

Technical Specifications:

• Material: AZ91D (Magnesium)
• Weight: 12g
• Strength: High Stiffness / Low Inertia
• Finish: E-Coat Black
• Availability: Made to Order

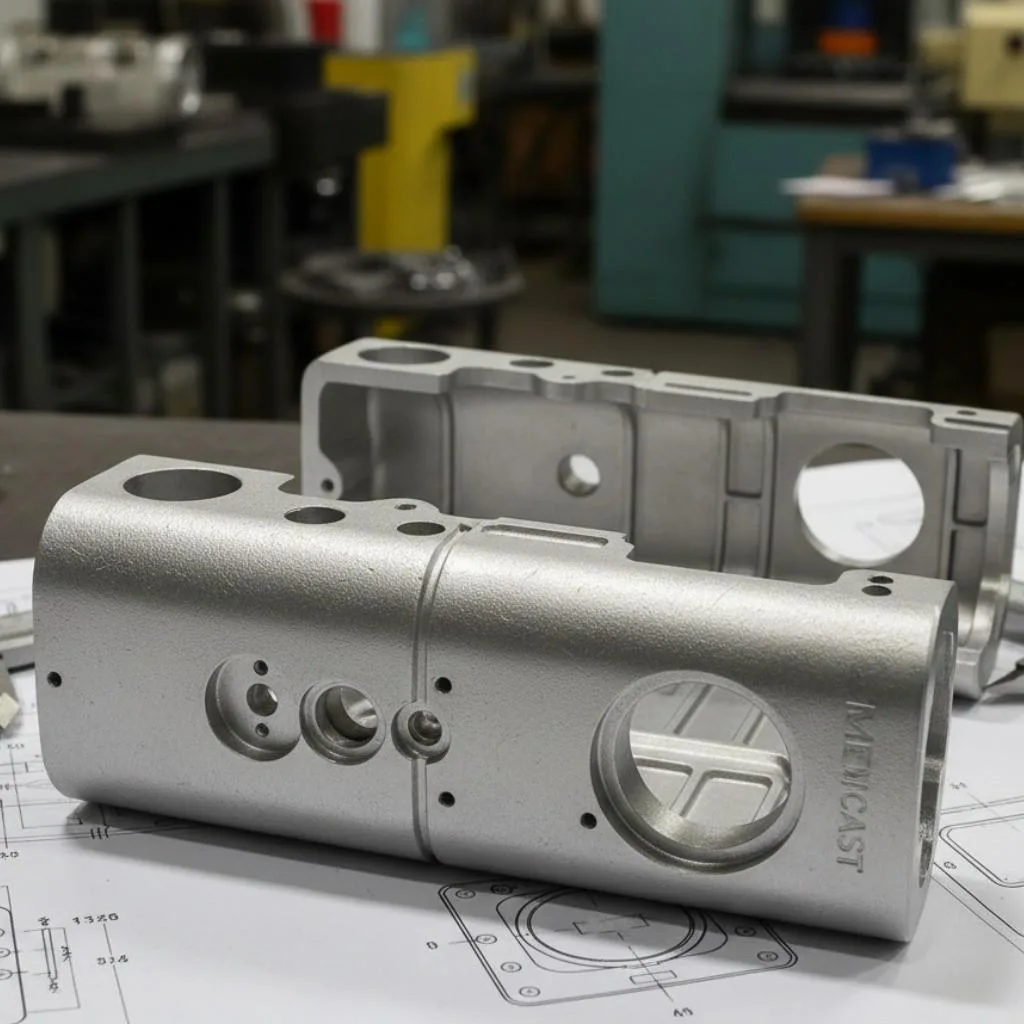

4. Medical Device Handheld CasingModel ID: MHT-MED-CASE-01

Description: Ergonomic housing for surgical instruments. The smooth surface finish “as-cast” requires minimal polishing before plating. The density of zinc gives the instrument a high-quality, weighted feel in the surgeon’s hand.

Technical Specifications:

• Surface Quality: Class A (Plating Grade)
• Sterilization: Autoclave Compatible Plating
• Tactile Feel: Heavy/Balanced
• Assembly: Self-Tapping Screw Bosses
• Availability: Prototype & Production

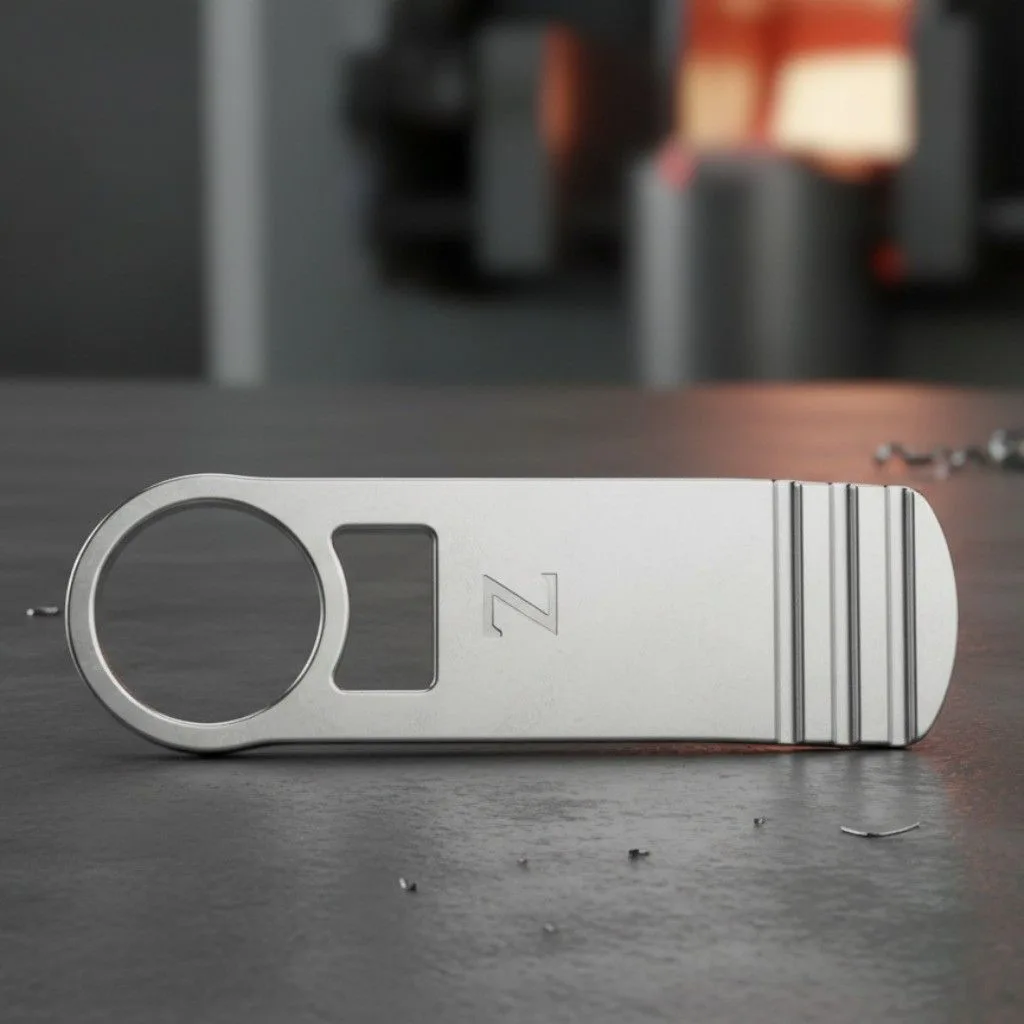

5. Zipper Pulls & BucklesModel ID: MHT-APP-ZIP-GEN

Description: High-detail decorative hardware for fashion and luggage industries. Capable of reproducing micro-text and logos with exceptional clarity. Produced in multi-cavity molds for extreme cost efficiency.

Technical Specifications:

• Cavitation: 16-Cavity Mold
• Detailing: Micro-Texture Capable
• Finish: Gold / Gunmetal / Antique Brass
• Volume:> 1 Million Units/Month
• Availability: Custom Designs Only

Testimonial

"Marcus Hi-Tech's hot chamber capabilities allowed us to miniaturize our connectors without losing strength. The zinc castings are incredibly precise." —

David Chen

Product Architect, Consumer Electronics

"Speed was our priority. Their hot chamber machines pump out our lock housings faster than any supplier we've used before, and the tolerances hold up perfectly." —

Roberto Ricci

Supply Chain Director, Automotive Security

"We switched to magnesium hot chamber casting for our drone chassis parts. Marcus Hi-Tech delivered the weight savings we needed with zero porosity issues." —

Sarah Jenkins

Lead Engineer, UAV Systems

"The surface finish on our medical casings is mirror-like right out of the mold. It makes the plating process so much cheaper and easier." —

Dr. Alan Grant

Procurement Head, Surgical Devices

"For high-volume decorative hardware, Marcus is the best. Their multi-cavity dies last forever, and the unit cost is unbeatable." —

Jessica Wu

Sourcing Manager, Luxury Luggage Brand

Frequently Asked Questions

What materials are best for hot chamber die casting

This process is optimized for low-melting-point alloys, primarily Zinc (Zamak 3, 5, 7) and Magnesium (AZ91D), as well as Lead and Tin alloys.

Why not use Aluminium in hot chamber casting?

Molten aluminium has a high melting point and is corrosive to steel; it would dissolve the submerged injection system (gooseneck). Aluminium is cast using the Cold Chamber process.

What is the main advantage of hot chamber over cold chamber?

Speed. Because the injection system is submerged in the metal, the cycle time is significantly faster (up to 15 shots/minute) compared to the ladle-transfer method of cold chamber.

How precise can hot chamber casting get?

Extremely precise. We can achieve tolerances as tight as ±0.02mm, making it ideal for small, complex mechanisms and electronic housings.

Where are Marcus Hi-Tech’s hot chamber facilities located?

Our facilities are in India (Pune, Bangalore, Coimbatore, Chennai, Faridabad, Rajkot, Jamnagar, Hyderabad), Vietnam (Hanoi, Ho Chi Minh), and China (Tianjin, Qingdao, Ningbo, Nanjing, Hangzhou, Jiangsu Province).
