Stop Cycle Delays, Start Rapid Production: Unlocking Volume Efficiency
Reliance on gravity casting or machining from solid for high-volume production frequently results in unacceptable lead times, material waste, and cost overruns. Professional pressure die casting manufacturers resolve these scalability constraints by utilizing high-velocity injection systems to fill complex molds in milliseconds. This process intensification guarantees thin-wall capability and dimensional repeatability, drastically lowering per-unit costs while maximizing structural integrity. Partner with Marcus Hi-Tech to inject speed and precision directly into your supply chain.
How to Launch Your HPDC Manufacturing Project
Utilize this structured pathway to transition your part concepts into mass-produced, high-pressure die cast components. We navigate from flow simulation to automated casting cells, certifying your parts meet the porosity and strength standards required by automotive and electronic sectors.
Supplies Needed:
- 3D Part Geometry (STEP/IGES)
- Annual Volume Projections
- Surface Finish Requirements
Step 1: Submit Designs for DFM Review
Upload your CAD models and volume requirements via our engineering portal. Our die casting specialists evaluate the geometry for “Design for Manufacturing” (DFM) suitability, checking draft angles, wall thickness uniformity, and undercut feasibility to ensure smooth ejection from the die.
Step 2: Flow Simulation and Alloy Selection
Collaborate with our metallurgists to select the optimal alloy (e.g., ADC12, Zamak 5) for your mechanical needs. Simultaneously, we run Magmasoft® or similar flow simulations to predict metal filling patterns, optimizing gate locations and overflow wells to minimize trapped air and porosity.
Step 3: Die Fabrication and T1 Sampling
Once the design is frozen, we machine the hardened steel mold (H13) and produce initial “T1” samples. These off-tool parts undergo X-ray analysis and dimensional layout inspection to verify internal integrity and adherence to tolerances before the mold is hardened for long life.
Step 4: Authorize for Mass Production
Review the capability studies (Cp/Cpk) and physical samples. Upon your sign-off, Marcus Hi-Tech initiates full-scale production. We employ real-time shot monitoring systems to control injection pressure and velocity, ensuring consistent part density across millions of cycles.
Product

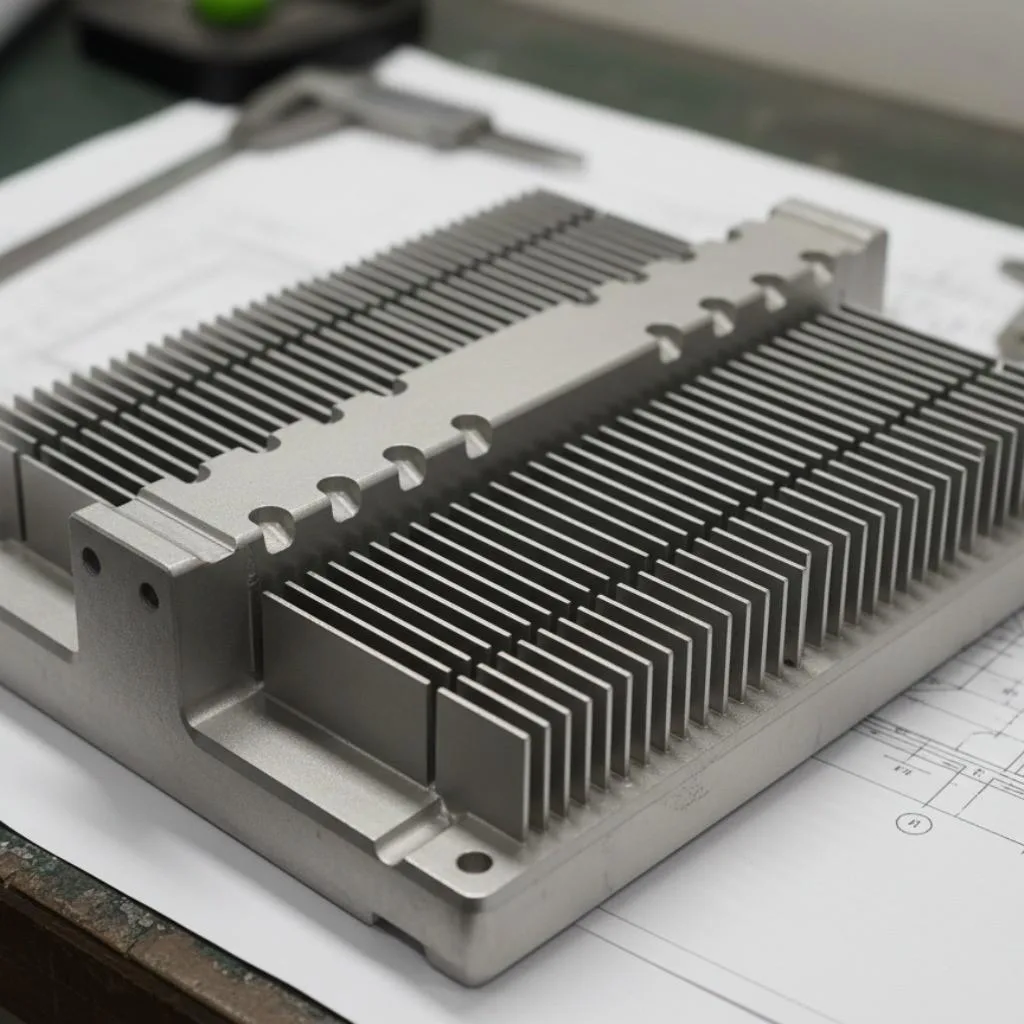

1. Telecom Base Station HeatsinkModel ID: MHT-TEL-HTS-5G
Description: Large-format aluminium heatsink with high aspect ratio cooling fins. Produced using specialized high-velocity injection to ensure complete fill of thin fins without cold shuts. Provides superior heat dissipation for 5G electronics.
Technical Specifications:
- Fin Thickness: 1.5mm Tapered
- Surface Area: Optimized for convection
- Finish: SurTec 650 (Conductive)
- Flatness:< 0.5mm across 400mm
- Availability: Made to Order

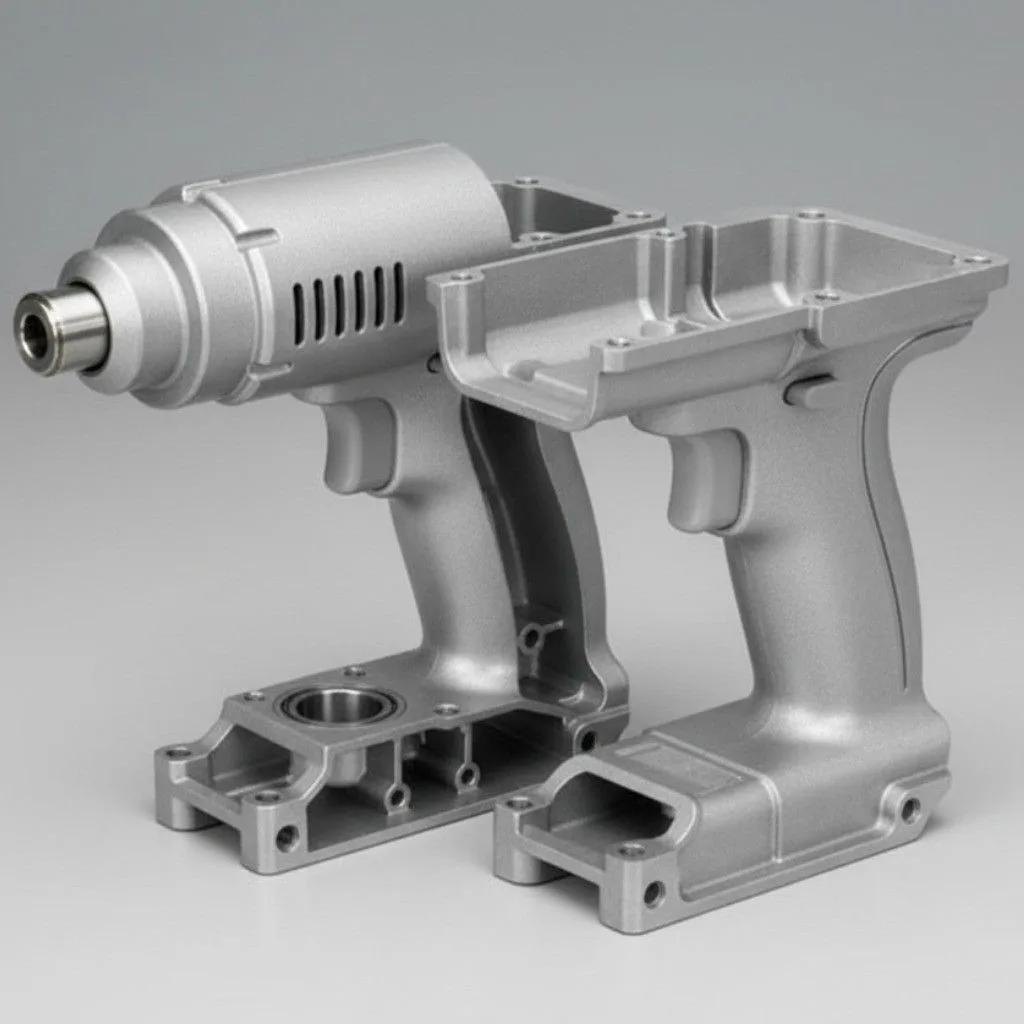

2. Handheld Power Tool HousingModel ID: MHT-CON-TOOL-PRO
Description: Ergonomic, lightweight magnesium/aluminium alloy housing for industrial drills. Designed for high impact resistance and vibration dampening. Features over-molding compatibility for rubber grips.
Technical Specifications:
- Material: AZ91D (Magnesium) / ADC12
- Wall Thickness: 2.0mm Nominal
- Tolerance: ± 0.05mm
- Aesthetics: Powder Coated / Textured
- Availability: Mass Production (MOQ: 5,000)

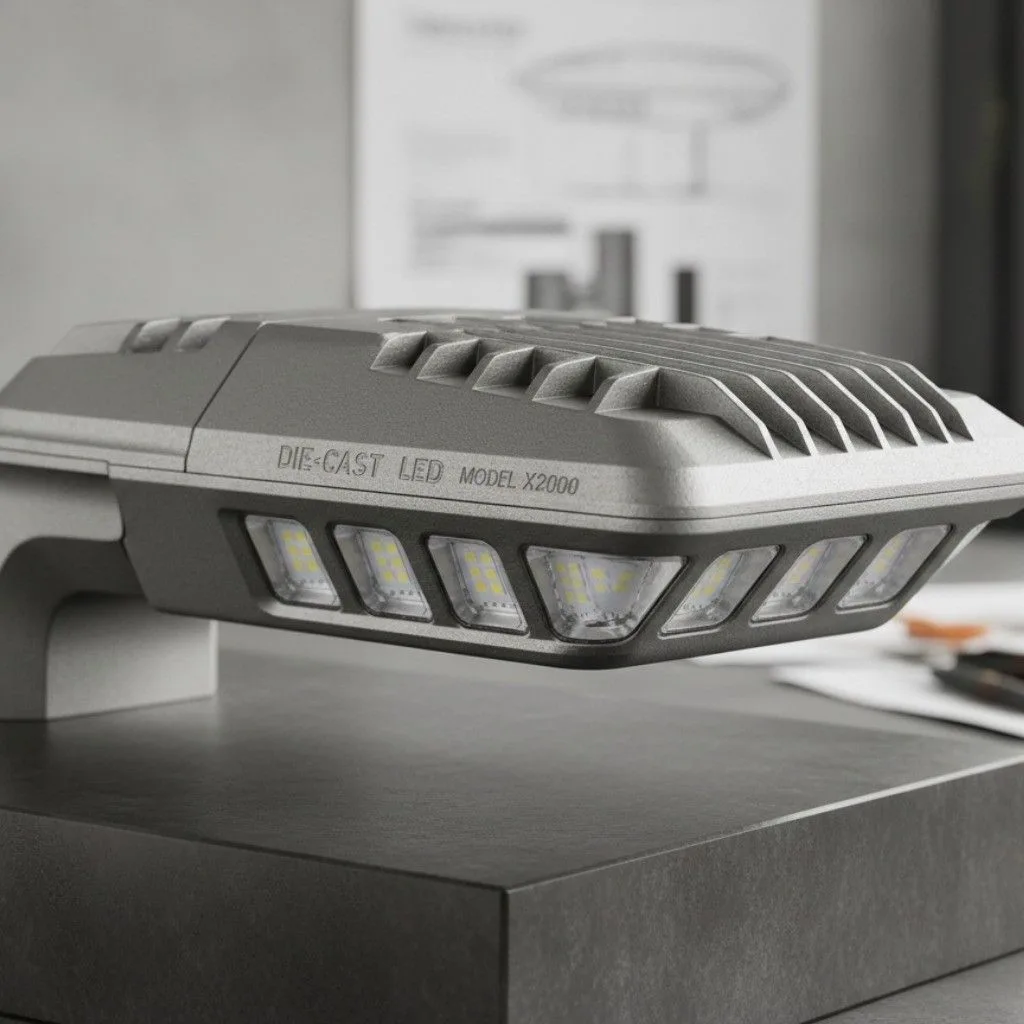

3. LED Street Light FixtureModel ID: MHT-LED-STR-120
Description: Robust, weather-proof enclosure for outdoor lighting. Cast as a single unit to eliminate assembly seams and improve ingress protection (IP66). Includes integrated thermal management ribs.
Technical Specifications:
- Machine Size: 800 Ton
- Environment: Outdoor / UV Stable
- Glass Sealing: Machined Groove
- Impact Rating: IK08
- Availability: Standard Molds Available

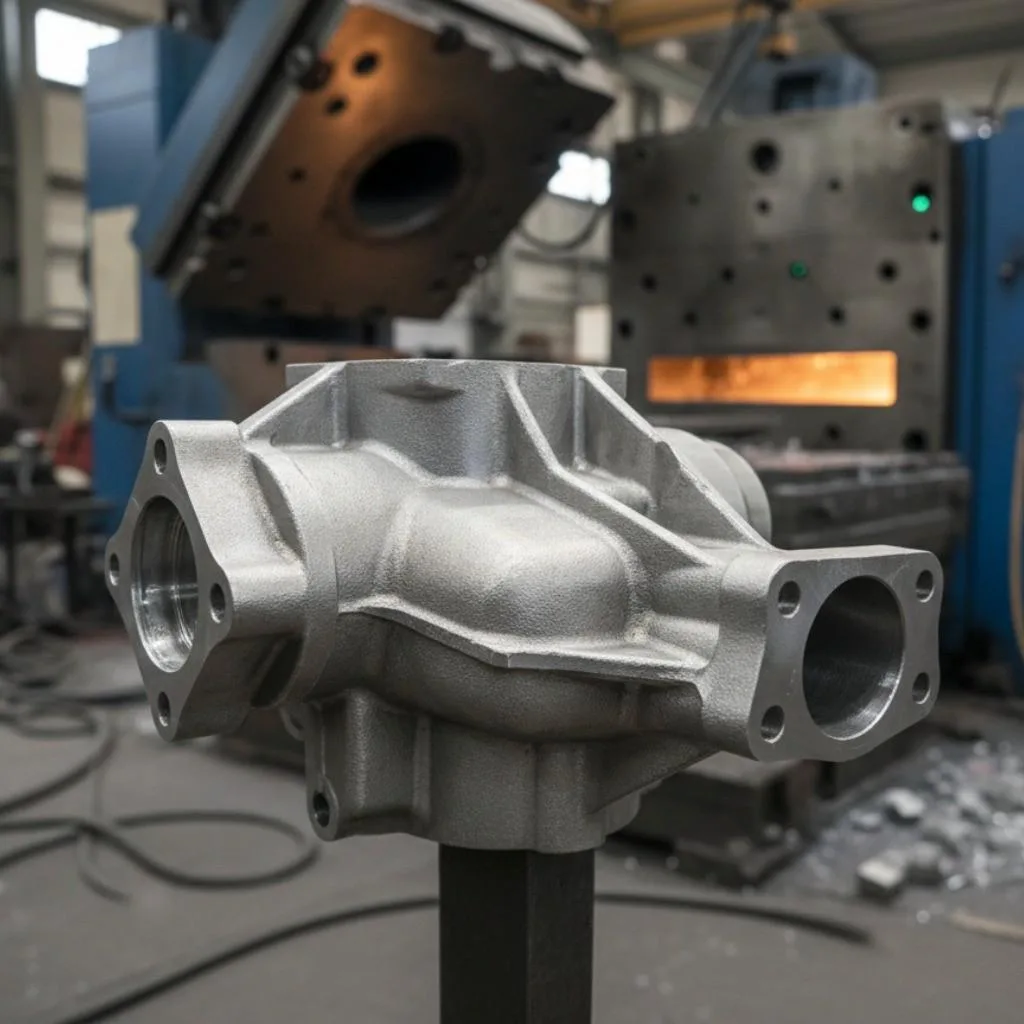

4. Hydraulic Pump BodyModel ID: MHT-HYD-PMP-25
Description: Pressure-tight valve body produced with multi-slide die technology to create complex internal coring without sand cores. Withstands high operating pressures with excellent density and pressure tightness.
Technical Specifications:
- Pressure Rating: Tested to 20 Bar
- Core Technology: Hydraulic Slides
- Impregnation: Resin Sealed (Optional)
- Machining: Precision Honed Bores
- Availability: Built to Order
