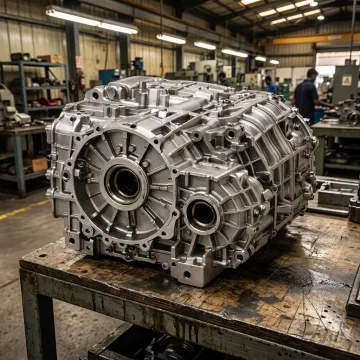

Die Cast Engine Housing Aluminum & Metal Options

Aluminum is one of the most common choices for die cast engine housing components because it offers a strong balance of weight reduction, thermal performance, corrosion resistance, and machinability. Depending on the application, magnesium, zinc, or other engineered alloys may also be considered. Marcus supports multiple alloy options, including aluminum grades such as ADC12, A380, A384, LM2, LM6, and LM25.

The right process depends on the housing’s size, wall thickness, structural demands, and production volume. Cold chamber die casting is often preferred for aluminum engine housings in higher-volume programs, while low pressure die casting is valuable when reduced porosity and stronger heat-treatable structures are required. Marcus also supports process selection through DFM review, simulation, and tooling evaluation before production begins.

Yes. Most engine housings require secondary machining to achieve final tolerances on sealing surfaces, bearing bores, threaded holes, and critical mating features. Marcus performs in-house CNC machining using 3, 4, and 5 axis equipment, with precision on critical features down to ±0.005 mm where required. This helps ensure the casting is fully production-ready for assembly and functional performance.

Available treatments can include anodising, powder coating, wet painting, plating, blasting, chromation, resin impregnation, and heat treatment, depending on the alloy and end-use environment. These processes can improve corrosion resistance, wear performance, appearance, and sealing reliability. Marcus provides in-house finishing support with pre-treatment, testing, and batch certification to help customers maintain quality and traceability.

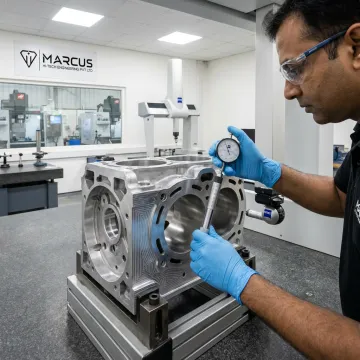

Quality control starts with tooling design and process planning, then continues through casting, machining, finishing, and inspection. Marcus operates under IATF 16949:2016 and ISO 9001 certified systems and uses structured methods such as DFM, APQP, PPAP, and FAIR. Inline inspection, CMM-based metrology, leak testing support, and batch-level documentation help verify dimensional and process consistency throughout production.

Yes. Marcus supports development through prototyping, T0 and T1 trials, and production ramp-up, then scales into repeat manufacturing as program demand grows. This is useful for OEM and industrial customers who need one supplier from early validation through serial production. In-house tooling, machining, and coordinated finishing also help reduce handoff delays between development and full-volume manufacture.

A strong quote request should include 2D drawings or 3D CAD files, annual volume estimates, alloy preference, critical tolerances, machining requirements, surface finish needs, testing expectations, and any industry-specific documentation requirements. If available, sharing assembly context and performance targets is also helpful. Marcus can then review manufacturability, recommend the most suitable process, and identify tooling or validation needs early.

Yes. Marcus supports customers across India, North America, the United Kingdom, Australia, Vietnam, Italy, Mexico, and the Middle East Asia. Its manufacturing base in Coimbatore, India, along with partner capabilities in India, Vietnam, and China, helps support global sourcing strategies. This setup is especially useful for buyers seeking consolidated manufacturing, certified quality systems, and dependable export-ready supply.
